Produce a verified endpoint-to-switch mapping and a clear responsibility record. Distinguish physical connection identifiers from logical network settings and preserve the history of authorized changes.
A useful port schedule lets another technician locate a device, trace its connection and contact the right owner. An unexplained port number is insufficient when several switches, patch panels or buildings use the same numbers. A label is a starting point for verification, not proof that the current patching matches the drawing.
Manufacturer guidance describes cable identifiers and supported discovery tools that help locate connections. CIS asset-inventory guidance emphasizes maintaining an accurate record of connected assets and their ownership. The worksheet here combines those purposes in an original apprentice exercise.

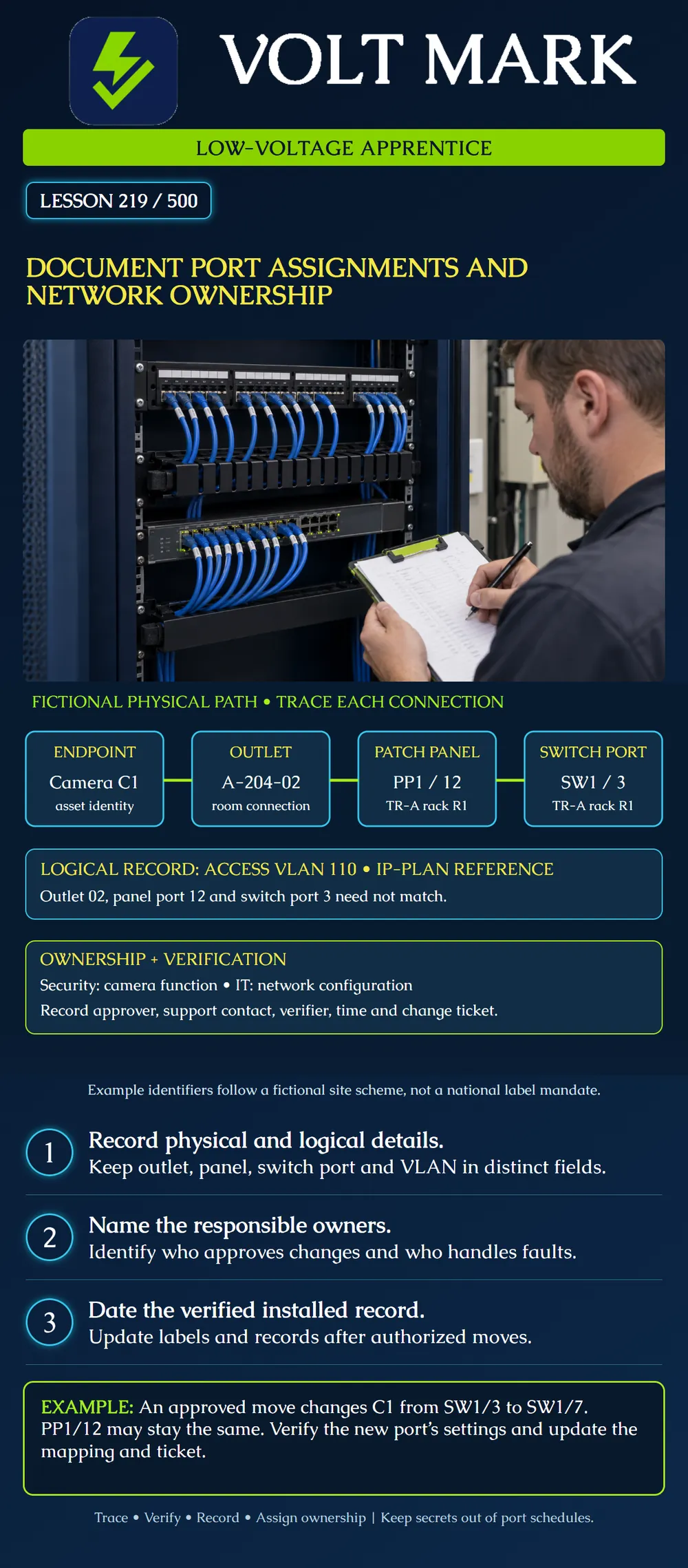

Camera C1 connects through a short equipment cord to outlet A-204-02. The fixed cable terminates at patch panel PP1 port12 in telecommunications room TR-A, rack R1. A patch cord connects PP1/12 to switch SW1 port3 in the same rack.
Record the path as: C1 -> A-204-02 -> TR-A/R1/PP1/12 -> TR-A/R1/SW1/3.
The numbers 02,12 and3 identify different components; they do not need to match. The names are fictional project identifiers. This lesson does not claim a particular label syntax, color or numbering pattern is required nationwide. Follow the adopted project administration scheme and applicable specification.
In the exercise, SW1/3 is an access port assigned to VLAN110. Keep that assignment in a separate field from the physical port number. Also record the approved address-plan reference and, where appropriate, the observed address, address-assignment method and device hardware identity.
A VLAN is not a patch-panel position. An IP address is not a permanent physical-location label. An address can change, and a device can move. Tie the related records to an asset identifier and distinguish planned values from verified operating observations.
For a stack or modular switch, include the full interface identity used by that platform. SW1/3 is simplified for this diagram; it is not a substitute for a real chassis/member/slot/port designation where required.
For this fictional site: Security owns the required camera function and approves operational impact. IT owns network configuration and approves network changes. The cabling maintainer verifies and repairs the physical connection within the assigned work. The service desk routes incidents through the approved support process.
These are example roles, not legal definitions or universal contract assignments. In an actual handoff, record the responsible team or person, approved contact route, change approver and after-hours escalation method. If an owner is unknown, mark it unresolved and assign follow-up rather than guessing.
Ownership also defines the boundary of work. A cabling fault and a VLAN assignment fault can involve different people. The apprentice should report which evidence supports each possibility and avoid changing a switch configuration outside the approved task.
Compare the drawing, visible labels, patching and approved inventory. Use the correct tool and procedure when tracing is needed. Cable identifiers can help map the outlet to a panel termination. Supported discovery information can help identify a switch and port, but its absence does not prove there is no connection.
Discovery data may be disabled, incomplete or refer only to the adjacent device. A switch's MAC-learning entry can point toward a downstream switch instead of a directly attached endpoint. Correlate the evidence; do not call a complete cable path verified from one remote table.
Do not interrupt a live camera or critical system merely to locate a cable. Obtain the required maintenance authorization for tests that disconnect equipment or change link state. Use tools rated and intended for the circuit and PoE conditions. The lesson does not authorize shorting pairs or applying an unsuitable toner to powered wiring.
Ticket CHG-219 authorizes moving C1's patch connection from SW1/3 to SW1/7. The fixed outlet-to-panel cable remains on PP1/12.
Before the move, IT confirms the target port's approved VLAN, PoE requirements and other necessary settings. After the authorized move, verify the physical connection and intended camera function. Update the port schedule to SW1/7, with the actual date/time, verifier, evidence and ticket reference.
The old switch assignment belongs in the change history, not in the current installed-position field. PP1/12 remains unchanged unless evidence shows that connection also changed. Do not rename the fixed outlet to7 simply to make the numbers look consistent.
A partial completion might read: patch connection verified to SW1/7; effective VLAN confirmation pending. That is more useful than a blanket completed label that hides unfinished work.
The printed drawing shows SW1/3, the switch description says Camera C1, but the patch cord is physically connected to SW1/7. These records disagree.
Record the discrepancy and verify the actual endpoint/path using approved methods. A stale description or drawing is possible; neither automatically overrides the observed connection. Resolve the approved intended configuration with the owner, then correct the authorized records. Do not move the cable back just to make the old drawing appear correct.
Include: Site/building; room; rack; endpoint asset; outlet; fixed-cable identifier; panel and port; switch and full interface; VLAN/mode; address-plan reference; power requirement; asset owner; network owner; change approver; support route; verification method; date/time; verifier; ticket; unresolved items.
Attach the relevant test-result reference where the scope requires it. A mapped connection is not automatically a certified cable or an accepted application. Keep those results distinct.
Protect the schedule according to the owner's information policy. Device locations and network details can be sensitive. Use controlled vault references rather than copying passwords into the sheet. Retain an editable authoritative record and a clearly dated handoff copy as required by the project.
Mistake: Renumbering PP1/12 or outlet A-204-02 to match the new switch port7. Correction: Update the changed switch assignment while retaining the fixed-path identifiers that did not change.
Mistake: Treating the switch description Camera C1 as proof of the present patch connection. Correction: Correlate labels, observed patching and approved device evidence; record and resolve the discrepancy with the owner.
Mistake: Overwriting SW1/3 with SW1/7 without retaining the change record. Correction: Put SW1/7 in the current mapping and keep SW1/3 in history with CHG-219, the actual time, verifier and remaining checks.
Fluke Networks, Best cable tracing and tracking methods: https://www.flukenetworks.com/blog/cabling-chronicles/best-cable-tracking Read for cable identifiers and switch/port discovery concepts. Specific tools and connection procedures require their own instructions.
Center for Internet Security, Control1: Inventory and Control of Enterprise Assets: https://www.cisecurity.org/controls/inventory-and-control-of-enterprise-assets Read for the inventory and ownership basis. This lesson does not claim that its fictional worksheet establishes compliance with every CIS safeguard.
