Select the certification limit and correct test adapters

What you should be able to do

Given an installation sketch and written acceptance requirement, identify the test boundary, select the corresponding certification limit, and explain the adapter choice. This is a planning lesson; no installation is certified by completing it.

Start with the required deliverable

Write down exactly what the owner or project specification requires: the cabling configuration, category or class, standard and edition, and any additional tests. A cable jacket category alone is not a complete acceptance specification. If the job documents disagree, have the responsible project authority resolve the conflict before collecting final acceptance results. Do not select a weaker limit simply to obtain PASS.

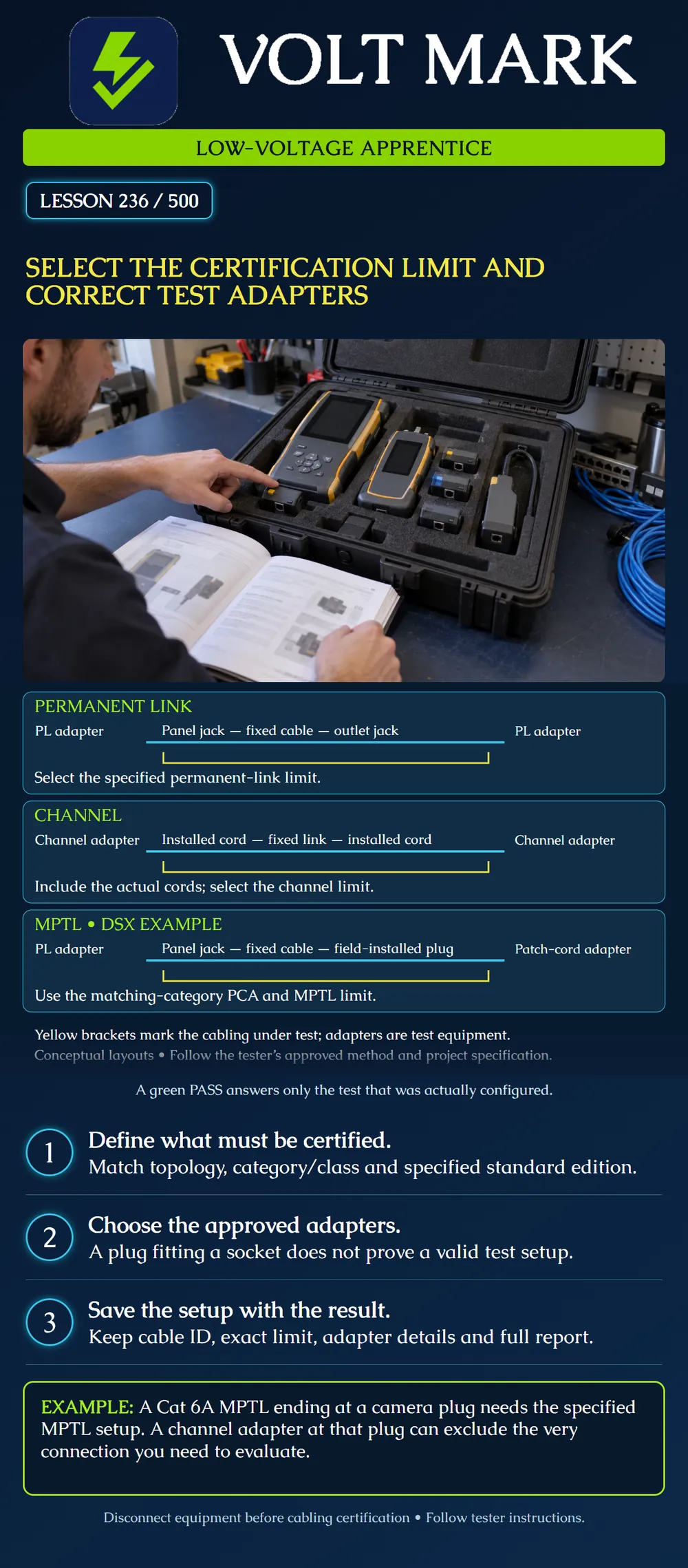

Read the drawing carefully

Each horizontal line is a simplified test connection, not an individual conductor. The yellow bracket names the cabling being evaluated. The adapters outside it are test equipment. No cable lengths, allowable connection counts or universal limits are encoded by the spacing. “PL” means permanent link; “PCA” means patch-cord adapter.

A patch-cord adapter used at an MPTL endpoint does not mean an extra patch cord should be inserted into that link. The adapter is the measurement interface for the field plug. Ordinary patch-cord certification is a separate configuration. Likewise, a plug at both ends does not automatically make an assembly the one-jack/one-plug MPTL depicted here.

Original planning exercise

A training work order identifies cable CAM-236. It specifies Category 6A MPTL certification. The drawing shows a panel jack, fixed horizontal cable and a field plug for a camera.

Complete a setup card: Cable ID: CAM-236. Required boundary: panel-jack-to-field-plug MPTL. Selected limit: the exact approved Cat 6A MPTL entry, including the applicable standards family/version shown by the instrument. Jack-end adapter: compatible permanent-link adapter. Plug-end adapter: compatible Category 6A patch-cord adapter for the documented DSX method. Evidence: full saved report and setup details.

The camera is not left connected in place of the test remote. Follow the instrument's connection and isolation instructions; this drawing does not authorize connecting a certifier to energized equipment.

Where beginners go wrong

Before starting a supervised test

Confirm the main unit, remote, adapter types and supported software/limit set. Inspect connectors and test leads under the manufacturer's instructions. Confirm required calibration and reference/setup procedures for that instrument. Keep the cable identification consistent at both ends. Save an initial setup record so later reviewers can reconstruct the method rather than relying on memory.

After testing

Retain the complete report, not only a photo of the PASS screen. Review the requested limit, cable ID, timestamp, operator and available instrument/adapter identifiers. Preserve failed and corrected records with clear revision notes. If the wrong configuration was used, correct the setup and perform the required test; relabeling an old result is not equivalent.

Knowledge check

Worked through

A fictional CAM-236 review finds the requested Cat 6A MPTL limit on the report, but the setup photograph shows a channel adapter at the field-plug end. The reviewer marks acceptance evidence incomplete: the correct limit name does not establish that the required plug connection was measured. The response is to confirm the supported permanent-link adapter and category-appropriate patch-cord adapter for the documented DSX method, arrange the authorized test, and retain the original report with the reason for retesting. No measurement is created by changing the report label.

Paper Exercise

The work order requests permanent-link certification. The supplied drawing has a panel jack and outlet jack, and the saved report identifies a channel test including two equipment cords. Write the mismatch and the next action. Suggested answer: The report covers a different assembly from the specified fixed link. Confirm the applicable permanent-link limit and supported adapters, then obtain the required test under the approved work procedure. Keep the channel record identified as such; it cannot simply be renamed permanent link.
